GMT 4 Settings

Show Watch Logo - Controls which of the 11 available logo's to display on the watch face.

Licensed customers can also set up and configure their own logo of up to 32 x 32 pixels via the website. See news story on how to set up custom logo.

Show Alarm Icon - When selected a small  g  icon will show if active Alarms are currently set.

Show Battery Icon - When selected a small icon  a  b  c  d  e  will appear to show battery status. When battery drops below 10% the battery empty icon  e  will change colour to same colour as the numbers.

Show Phone Connected Icon - When selected a small  j  icon will appear to show the watch is connected to the phone.

Show Notification Icon - When selected a small  t  or  u  icon will appear to show that unread notifications exist.

Second Hand - There are 3 options for the second hand:

1. Off - The second hand will not be shown, even in gesture mode.
2. Always On (max 4 colours) - The second hand will always be shown. If the 'Power Save during Do Not Disturb' is set then the second hand will be turned off. The 'Always on' option is not supported across all devices so it will only appear if supported on your device. There is also a limit of 4 colours with this option. If you exceed the 4 colours the second hand will switch back to only on with gesture/ movement.
3. On with Gesture / Movement - Shows the second hand when you lift your hand to check time. When the device switches back to low power mode the second hand will be hidden.

Power Save in Do Not Disturb (DND) Mode - When this feature is turned on the watch face will go into power saving mode whilst the Do Not Disturb mode is set. In this mode the second hand will be turned off and the web communication to check the current profile to be applied (for those people who have purchased an Activation Key) will be deactivated. Both these features will be automatically tuned on again when the watch switches out of Do Not Disturb mode.

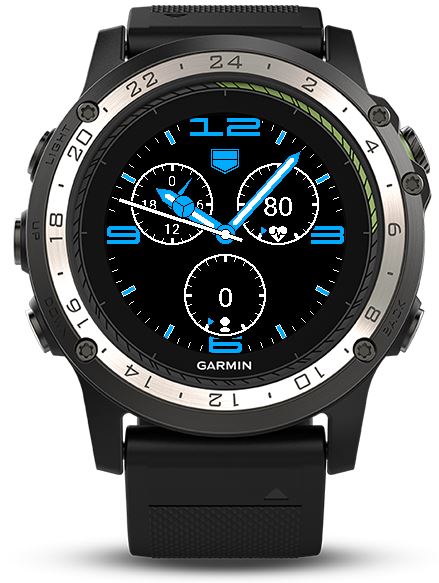

The 'Home' hand is a special feature that allows you to display another hour hand to show the time in a alternative time zone. If you set the 'Home Time Zone' to be UTC+2 then when ever you are outside that zone the additional hour hand will be displayed. This is especially useful for frequent travelers as they can set the 'Home' time zone and then whenever they are outside that zone an additional hand will be displayed to show the time at home.

An alternative colour can be used for the 'Home' hand as well as displayed in 24 hour format for those devices that have a 24 hour bezel on the outside of the watch.

Home Time Zone set to 'None'

Home Time Zone to show GMT+7

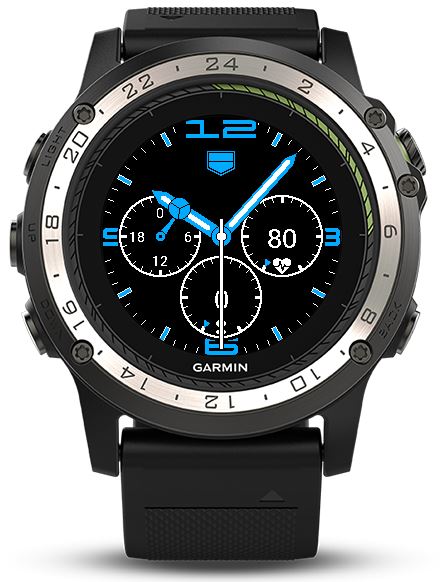

Home Time Zone set to show GMT+7 using 24 hour hand. Shows 7am on outer bezel of D2 Charlie device.

Style for Home Zone Hand - Select the style of hand to be used for the Home time zone hand.

Home Time Zone - Select the alternate time zone to be used for your 'Home Time Zone'. If you wish to turn this feature off set the Home Time Zone to 'None'.

When the Home Time Zone is set an additional hour hand will appear to show the time in that zone. This additional 'home hand' will only be displayed when you are not in that zone.

The 'Home Time Zone' can be set to any other time zone in order to display the time in that zone if you wish. In that case it would be hidden if you ever traveled to that zone.

Show Home hand as 24 Hour Clock - Show the additional hand as a '24' hour hand. For example when it is 6am in your Home time zone the additional hand would appear at the 3 o'clock position. Tis is useful for devices with a 24 hour bezel on the outer dial.

DST Rule Home Time Zone - Select the Daylight Saving Time (DST) rule that applies to your home time zone. This will automatically control adjusting time on your home time zone.

Home Time Zone Colour AM - Select the colour for the additional 3rd home time zone hand when it is AM in the home zone. This makes it easier to read time for alternate time zones and understand if it is morning or after 12pm.

Home Time Zone Colour PM - Select the colour for the additional 3rd home time zone hand when it is PM in the home zone. This makes it easier to read time for alternate time zones and understand if it is morning or after 12pm.

GMT4 watches faces can display an additional 2 alternative times zones. For each time zone you can define the offset from UTC, the name of the time zone and if daylight savings rules are to be applied.

Time Zone Name - User defined name for the time zone. This can be blank, if a name is entered it will be used as a label on the appropriate dials. A maximum of 10 characters are allowed.

Time Zone - Alternate time zone offset from UTC time.

Time Zone DST Rule - Select the Daylight Saving Time (DST) rule that applies to the alternate time zone. This will automatically control adjusting time in that zone.

Colours - The colours used can be controlled by adjusting any of the following settings. Please remember that a maximum of 4 different colours can be used on some devices if the 'always on' Second hand is used. Some devices also support a 64 colour palette via the website.

Control colours for all items on watch face
Select from 16 colours available in the palette	Select from 64 colours available in the palette (for licensed customers only only via web configuration tool)

Control colours for all items on watch face

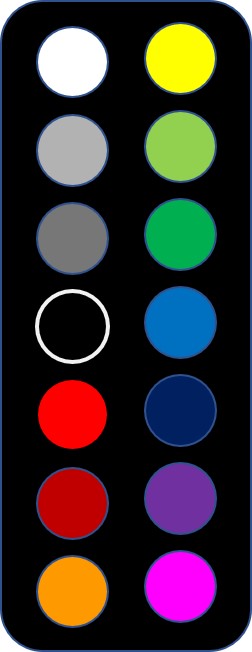

Select from 16 colours available in the palette

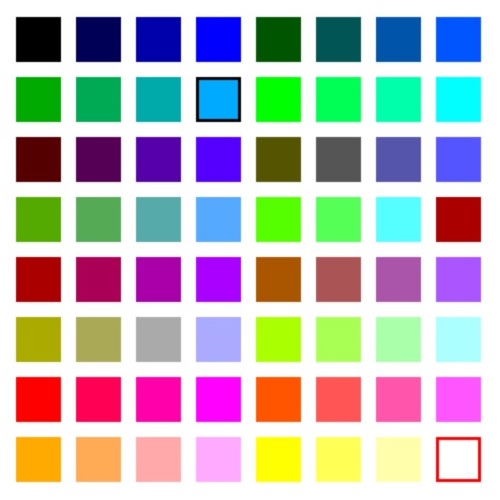

Select from 64 colours available in the palette (for licensed customers only via web configuration tool)

Face Colour - set colour for main face of watch.

Colour for Hands - set the primary colour for the hands on the watch.

Colour for Second Hand - set the colour for the second hand when displayed in full power mode.

Contrast Colour for hands - set the contrast colour used on some watch hand designs.

Tick Colour - set the colour for the minute indicators on watch face.

Major Tick Colour - set the colour for the major minute indicators. These are at every 5 minute position (5, 10, 15, etc). By setting the colour to None this will turn off the second markers.

Number Colour - set the colour to be used for numbers on the watch face.

Icon Colour - set the colour to be used for the icons shown on the watch face.

Minor Dial Colour - set the colour to be used for the details on the small dials.

Minor Dial Hand Colour - set the colour to be used for the hands on the small dials.

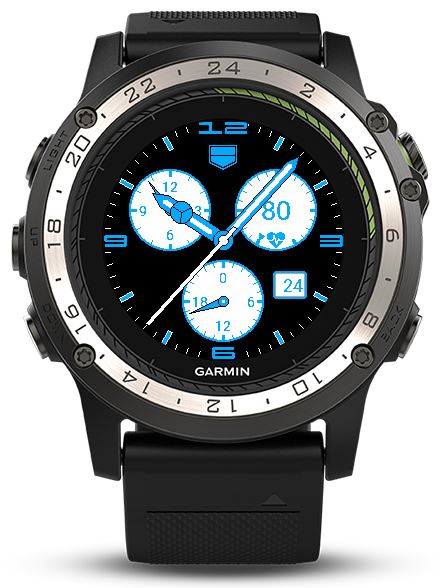

Minor Dial Face Colour - set the colour to be used for the face of the small dials. Typically this is the same as the watch face however contrasting colours can be set.

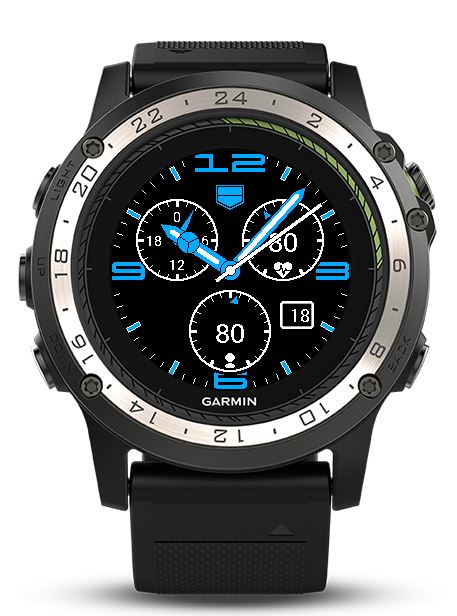

Your GMT4 watch face can support displaying up to 3 minor dials on the watch face. The position of these dials and the conent to be shown can be individually configured.

Minor Dial Spacing - Control how the dials are located on the watch face there are 3 alternative positions for grouping the dials:

1. At 10, 2 and 6 o'clock positions.
2. At 9, 3 and 6 o'clock positions.
3. At 9, 12 and 6 o'clock positions.

Position minor dials at 10, 2 and 6 o'clock

Position minor dials at 9, 3 and 6 o'clock

Position minor dials at 9, 12 and 6 o'clock

Dial Size - 2 dial sizes are supported. On larger watch faces such as Fenix 3 HR, Fenix Chronos, etc the user selected dials can be larger. Using the smaller dials does allow more space on the watch face for some of the bigger number fonts. Selecting larger dials on smaller watch faces or semi-round devices may overlap with other features or get trimmed at the bottom of the display. They are still available for use as it is up to you to define the look of your watch.

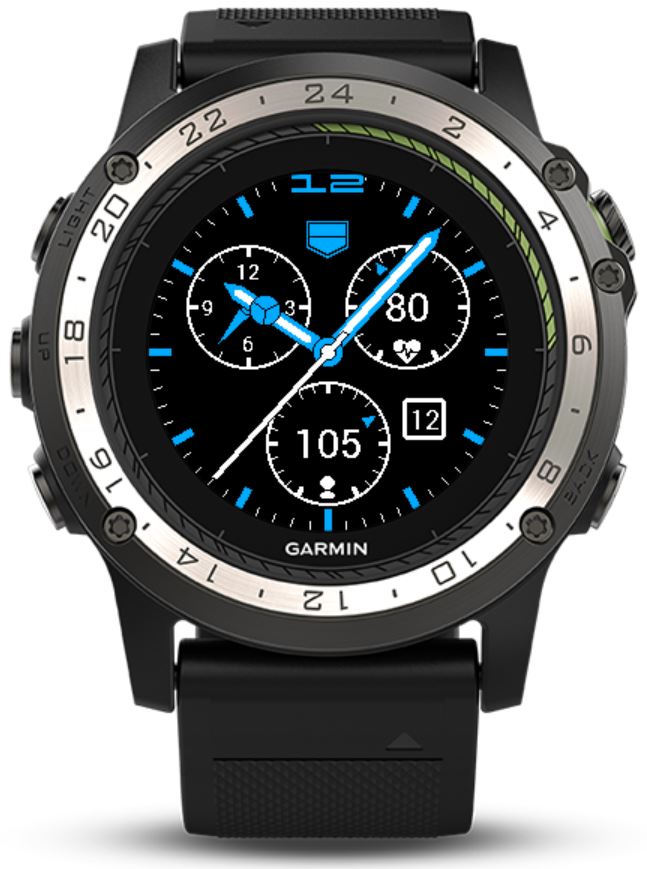

Dial size small (9 o'clock) and large can be mixed.

Using large dial and 'digital' dial on semi-round device

Dial 1 to 3 - set the information to be show on the dial. This can be:

1. None - turns off dial in that position.
2. Alternate time zone 1 in 12 hour format - shows time zone 1 using a 12 hour dial.
3. Alternate time zone 1 in 24 hour format - shows time zone 1 using a 24 hour dial.
4. Alternate time zone 2 in 12 hour format - shows time zone 1 using a 12 hour dial.
5. Alternate time zone 2 in 24 hour format - shows time zone 1 using a 24 hour dial.
6. Seconds - shows the seconds. When more than one hand is touching or over the seconds dial the seconds hand is 'parked' at the 12 o'clock position. This is to save battery power as both hands may have to be redrawn each second if they overlap the second hand. This dial is only available to those customers who have purchased and activate a license via the web configuration tool.
7. Battery Level -  k  shows battery level as an analogue dial from 0% to 100%
8. Activity -� s  Shows the daily steps performed as a percentage of your steps goal for the day as a dial.
9. Activity (with Heart Rate) -  h  Shows heart rate and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
10. Activity (with Distance) -  s  Shows distance covered (Kilometres or Miles) and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
11. Activity (with Altitude) -  w  Shows altitude (metres or feet) and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
12. Activity (with Steps) -  s  Shows steps completed today and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
13. Activity (with Calories) -  o Shows total calories burned and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
14. Activity (with Active Calories) -  o Shows active calories burned and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
15. Activity (with Battery) -  k  Shows battery level percentage as a number in the middle of the dial and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
16. Activity (with Body Battery) -  k  Shows Body battery level percentage as a number in the middle of the dial and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
17. Activity (with Stress) -  k  Shows battery level percentage as a number in the middle of the dial and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
18. Activity (with Temperature) -  x  Shows latest temperature (Celsius or Fahrenheit) from the device history file as a number in the middle of the dial and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial. This is the temperature from the watch sensor not from an external weather website!^{Note: 5}
19. Activity (with Pressure) - Shows latest atmospheric pressure (kPa or inHg) from the device history file as a number in the middle of the dial aand the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial.
20. Activity (with Sunrise/ Sunset) -  q  Shows sunrise and sunset as text in 24 hour time and the percentage of your goal activity^{Note: 3} performed as a progress indicator on the outer edge of the dial. Note: This calculation is based on current location. If you do not have GPS signal watch will default to last known location or show 0:00 time. On some devices this feature only works for those customers who have purchased a license activation key.
21. Weather -  x  Shows latest outside temperature (Celsius or Fahrenheit) as a number in the middle of the dial and the humidity as a percentage indicator on the outer edge of the dial.

    The temperature is provided by the OpenWeatherMap website and is based on your last GPS position. If you are using a large dial format then the wind direction and speed will also be shown.This feature only works for those customers who have purchased a license activation key.

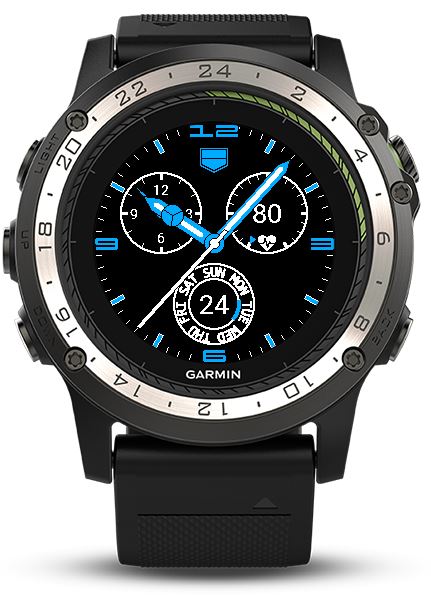

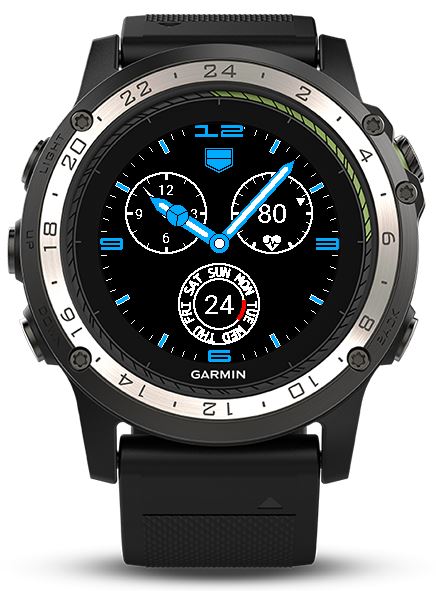

22. Day and Date - Shows the current date along with an indicator to show the Day of the week in the outer dial. The day of the week can be shown as short day string or a number.
23. Heart Rate Dial -  h  Shows heart rate as an analogue dial from 50 to 150. If used as a small dial the numbering will overlap with the dial.
24. Altitude Dial -  w  Shows altitude an analogue dial (in meters or feet) from 0 to 100. If you are more than 100 m/ ft above sea level a label will appear on the dial to indicate the base number for dial. The accuracy of the altitude is based on your device. My experience is that they are very good at calculating Latitude and Longitude but less so for altitude!
25. Floors Climbed Dial -  s  Shows the number of floors climbed along with a progress indicator on the outer edge of the dial showing percentage of floors climbed goal.
26. Weekly Activity Dial -  n  Shows the active minutes as a percentage of your weekly goal as a progress indicator on the outer edge of the dial
27. Weekly Activity Dial (min) -  n Shows the active minutes as a percentage of your weekly goal as a progress indicator on the outer edge of the dial and your active minutes for today as test in the center of the dial
28. Temperature -  x  Shows the latest Temperature from history file as a dial from 0 C to 40 C or 20 F to 120 F. This is the temperature from the watch sensor not from external weather website!
29. Pressure - Shows the latest Pressure from history file as a dial from 28in to 32in or 95 kPa to 105 kPa.
30. Alternate time zone 1 Digital format - shows time zone 1 using a 24 hour digital format with the time zone label.
31. Alternate time zone 2 Digital format - shows time zone 1 using a 24 hour digital format with the time zone label.

Note 1: for battery performance reasons Heart Rate is taken from most recent entry in history file. This is close to current but may vary slightly.

Note 2: Not all dials are supported on all devices. Content will vary depending on Garmin support for various features and versions of software development kit. See Support page for details.

Note 3: From release 4.7.1 the first dial drawn with the Activity will show the current steps as a percentage of the daily goal. If a second Activity style dial is shown then it will display the active minutes for the week as a percentage of your weekly goal. For example if you are using the two dials, Activity with Heart Rate and Activity with Active Calories, the first dial will show your step goal for the day and the second dial the active minutes goal for the week.

Note 4: The indicator on the Day and Date Dial will normally be drawn in red (see Example 1 below). If you have a watch that supports the 'always on' second hand and have used 4 colours in your colour scheme then the indicator will be drawn using the same colour as the minor dial hand (see Example 2 below).

Note 5: This option has been removed as from release 4.8 since it is not widely used and extra memory is required to support the new seconds dial.

Example 1

Example 2

Show Activity Progress on Main Face - show the activity progress as a small 'triangle' marker on the main watch face between 7 o'clock (0%) and 11 o'clock (100%) positions.

Show Sunrise/ Sunset on Main Face - a small 'triangle' indicator appears on the main face 1 hour before sunrise/ sunset and for 30 minutes afterwards. For example if sunrise is at 6:23am then from 5:24am until 6:53am a small marker will appear at the 23 minute position.

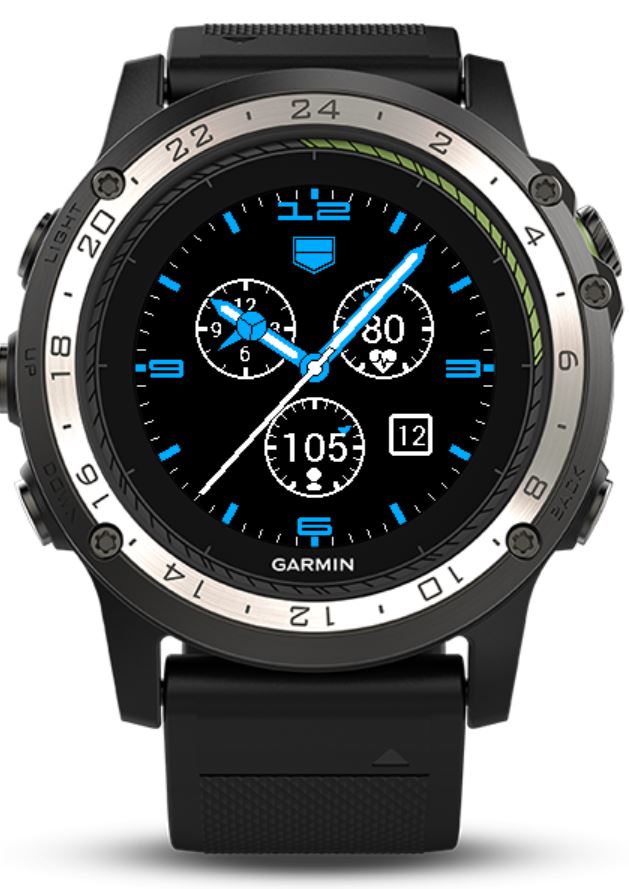

Show Day and Date Box - A day/date window can be displayed at 3 alternative positions. This window can be the day and date or just the date. Positions for the window are:

1. 3 o'clock.
2. 4/5 o'clock
3. 6 o'clock.
4. 12 o'clock. (for IQ2 and IQ3 round devices)

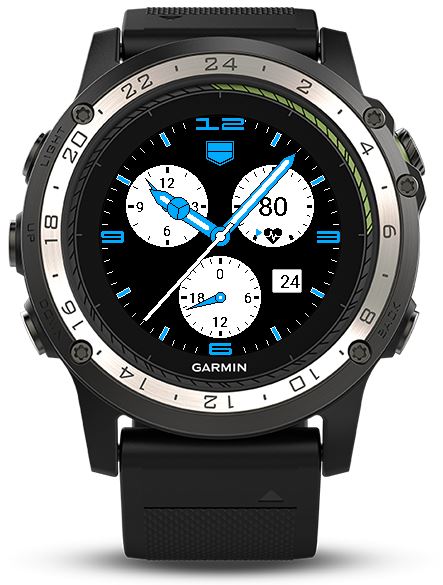

The colours for the Day and Date box are the same colour settings as used on the minor dials. See examples below.

Example 1

Example 2

Example 3

GMT4 watch faces support a number of different features to control the style for the major hands including colour, size and format.

Use Large Pivot for Hands - When set the pivot at the center of the watch will be slightly larger than the width of the hands. When disabled the pivot will be smaller, giving the view that hands are pinned to the face.

Extended Hands - When set the hands will extend past the center of the watch face. Gives a more balance look to some styles of hands.

Hand Style - Select style to be used for hands on the watch face

Select Hand style from 7 available styles

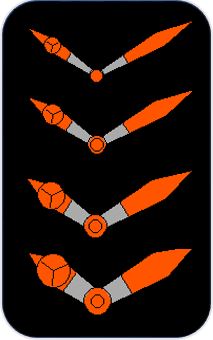

Hand Width - set width for hands from Extra Narrow, Narrow, Normal or Wide.

Width of Hands can be 4 different sizes.

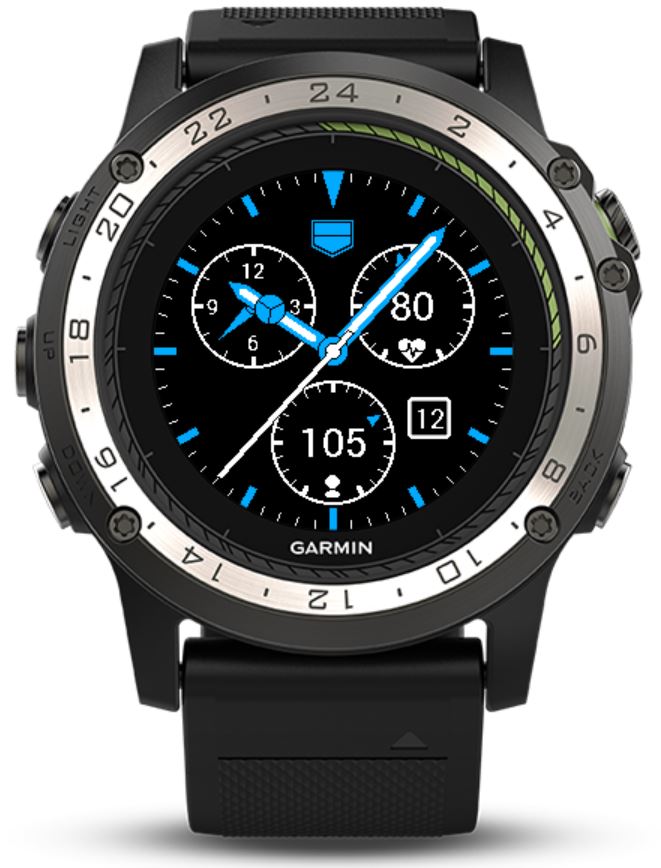

Style for Number Style - set if numbers should be displayed on watch face or if a single, double or triangle shape indicator should be used.

No Numbers, single indicator	No Numbers, double indicator	No Numbers, triangle indicator
Show 12 o'clock only	Show major numbers at 12, 3, 6, and 9 o'clock	Show even numbers only

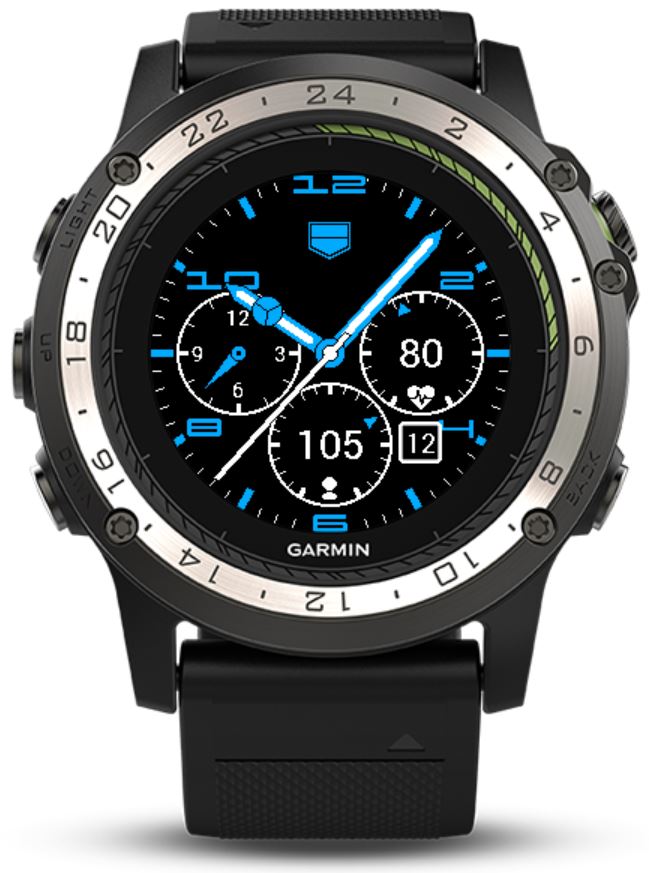

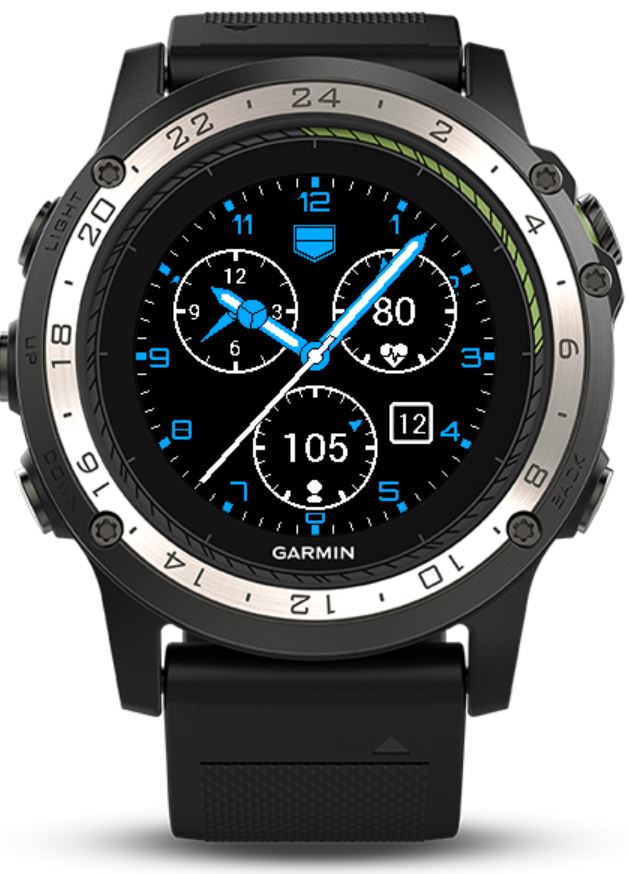

Show all numbers	Using small dials allows room for indicator to be drawn for numbers.

Note: On devices that are not round (eg. Forerunner 230/ 235) some of these styles may cause an overlap on the display with the alarm indicator if this is enabled as there is not enough space on screen to show these. On smaller screens selecting the no numbers or major numbers only option looks the best.

Number Font - select the font to be used for numbers.

Select from 8 different font styles available for numbers

Most features for GMT 4 watch faces are supported in the free version except those that require the website. There is a 30 day free trial period to use the additional features after which you must pay. This is to cover the cost of building and maintaining the website in a hosted platform. You can purchase a key by going to the GMT 4 Master Configuration page and following the instructions to sign in and purchase a key.

License Activation Key - Enter the Activation Key that was emailed to you when you signed into the website or purchased your key.

Once you sign in to the website configuration page using your Facebook or Google credentials you will be email an Activation Key.

Enter the Activation Key via Garmin Connect on your mobile device. Once your device has been activated the watch will check that it is using the correct profile every 5 minutes.

If your watch is not connected to your phone or your mobile device does not have internet access the update will fail and the watch will continue to use the current profile. The watch will continue to check every 5 minutes.

If your watch supports the 'Do Not Disturb' feature and it is enabled then GMT 4 can go into 'Power Saving' mode if the 'Power Saving in DND Mode' switch is set. In power saving mode the 1 second refresh of the second hand will be turned off. The internet check every 5 minutes will also be turned off.

Watch the video on how to install activation key for web features.
